Hydraulic Universal Testing Machine
High-precision hydraulic universal testing machines designed for testing the mechanical properties of materials are widely used in laboratories, factories, and quality inspection agencies.

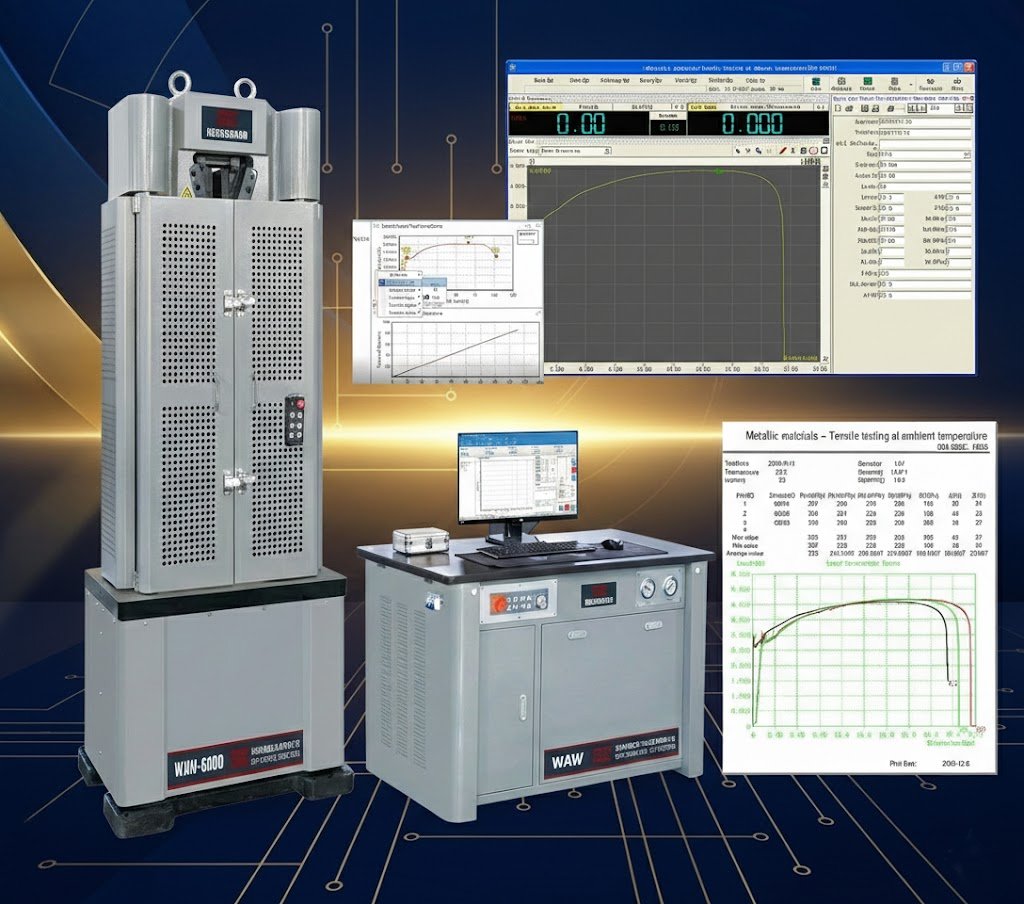

WAW-E Serie Hydraulic Universal Testing Machine (UTM)一Tensile, Compression, and Bending Testing Machine
The machine adopts hydraulic loading, digital display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on. It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Mechanical Test Of Different Types Specimens And Materials:
- Metals-(wire, rod, tube, strip, plate, strip, rebar, steel strand )
- Fasteners,bolt, nut(tensile, proof, single and double shear)
- Construction materials (reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.
Product Features
High Precision Spoke Load Cell
- Testing load accuracy: class 1
- Ensures stable and accurate test results
- Can be used on steel rebar, steel strand, wire, plastic, etc.
- Wide clamp range to cover different specimen size

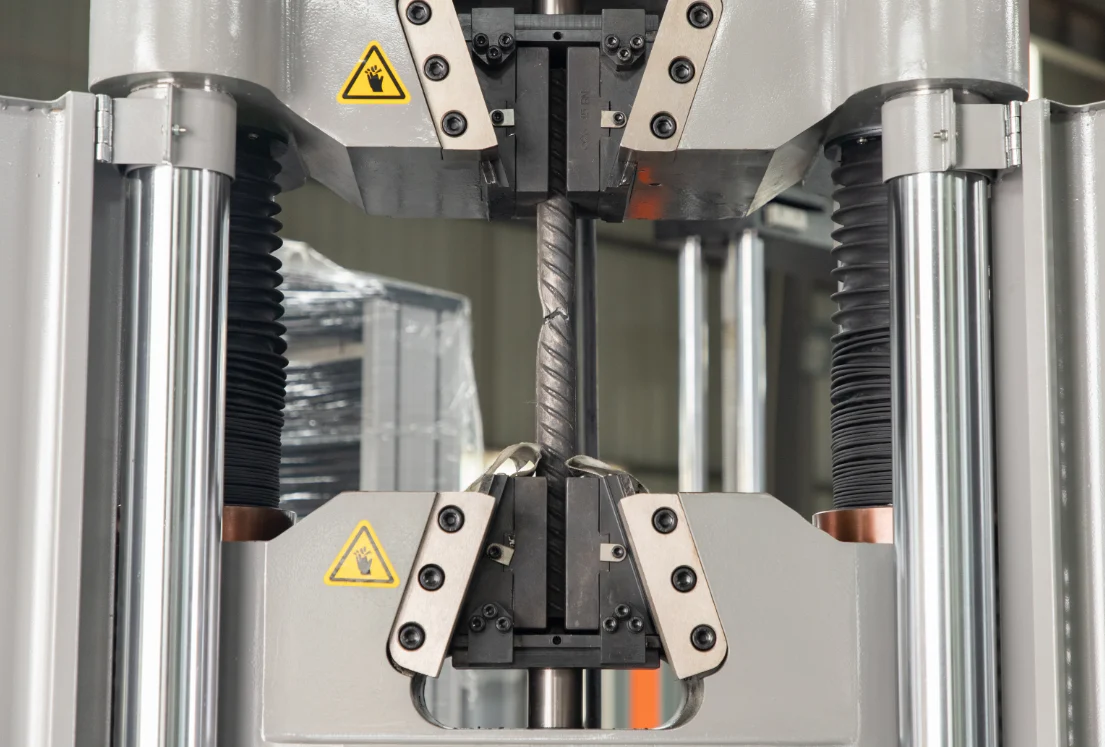

Semi Open Closed Built In Hydraulic Wedge Clamps
- Easy loading and allowing rapid loading and unloading of specimens
- Ensure specimen broken at middle position
- Convenient to change jaws
Hydrauli Oil Source System
- Composed of electric motor, hydraulic pump, oil tank, oil filter, control valve, etc
- Important component of hydraulic transmission and servo control system
- System pressure and clamping pressure

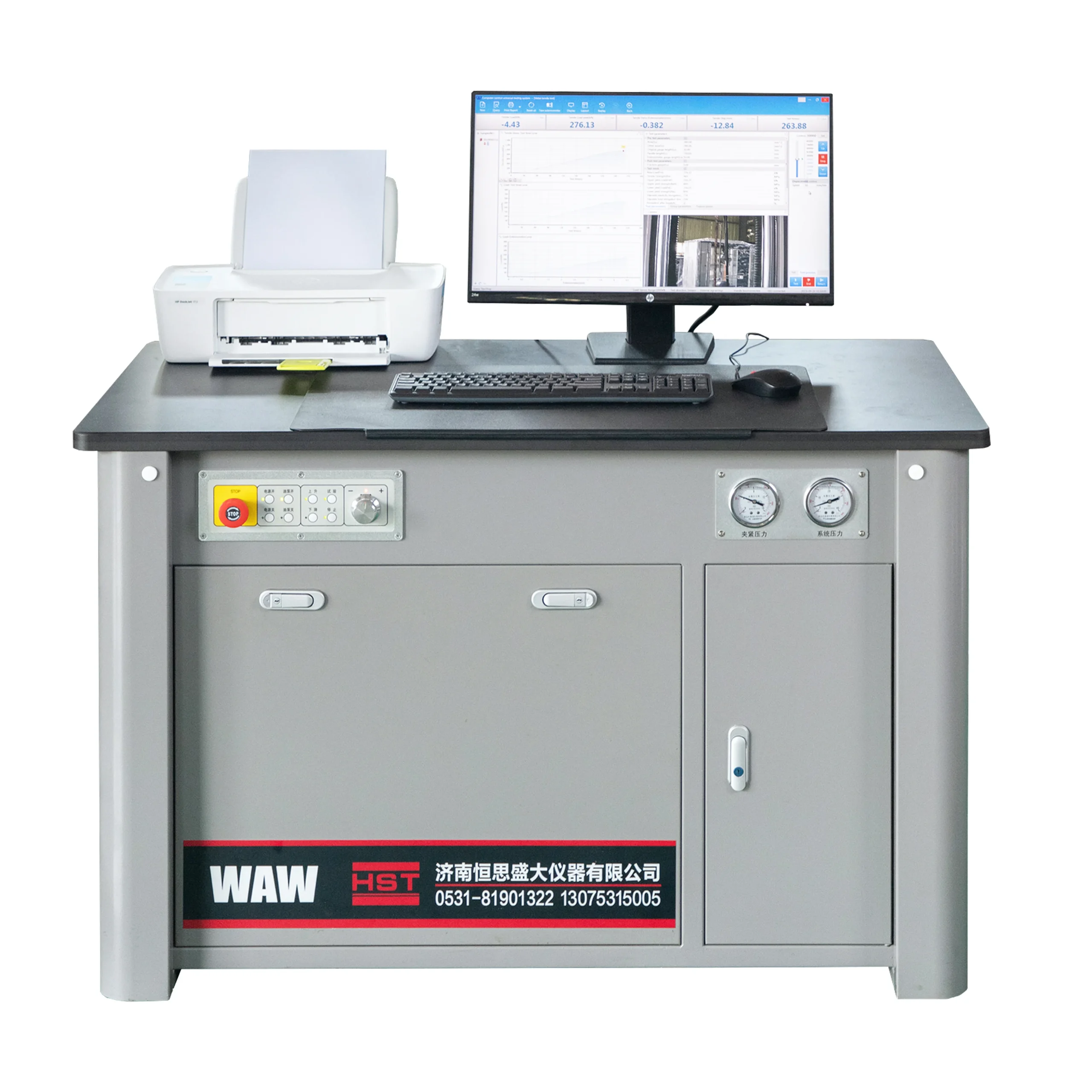

Professional materials testing software
-
Real-time display of force-displacement and stress-strain curves
-
Automatically calculates yield strength, tensile strength, elongation, etc.
-
Multilingual interface
-
PDF/Excel report export
-
Data storage and batch management
Universal Material Testing Machine Model Selection
WEW-D hydraulic universal Testing Machine
Test load
- 100kN~3000kN
Model
- WEW-100/ 300/ 600/ 1000/ 1500/ 2000/3000D
LAW series Servo-hydraulic Universal Testing Machine
Test load
- 600kN~1000kN
Model
- LAW-600F, LAW-1000F
WAW-F series servo-hydraulic universal testing machine
Test load
- 100kN~3000kN
Model
- WAW- 300/600/ 1000/2000/ 3000F
WAW-L Series Horizontal tensile testing machine
Test load
- 300kN~10000kN
Model
- WAW- 300/ 600/1000/ 2000/ 3000/ 5000/10000L
A truly universal tester
Application Cases of Universal Material Testing Machine
2026 New batch 1000kN hydraulic universal testing machine exported to Bangladesh
HST Group WAW -2000E Computer-Controlled Hydraulic Universal Testing Machine meet ASTM E4, ISO7500-1
HST WAW-1000E hydraulic universal mechanical testing machine with CE ISO certificats
General FAQs
Inconsistent test results and poor repeatability lead to unreliable R&D data and deviations in quality control.
The high-rigidity frame and precision ball screw ensure absolute stability during the loading process, guaranteeing high consistency and repeatability of test results from a hardware perspective.
Changing test types involves cumbersome fixture installation and debugging, wasting a lot of valuable testing time.
The quick-change fixture system and the innovative “plug-and-play” fixture design with automatic recognition allow the software to automatically identify and load the corresponding parameters, completing the test type switch within 5 minutes.
The software is complex to operate, and the training period for new employees is long. It requires dedicated software engineers, resulting in high labor costs.
The intuitive graphical user interface is based on a workflow wizard, allowing users to complete test setup simply by dragging and dropping. It includes a built-in standard library, enabling new employees to learn how to use it within half a day.
Q：What materials can it test?
A: Metals, plastics, rubber, composite materials, textiles, etc.
Q: Do you support ASTM/ISO standards?
A: The equipment fully complies with mainstream international standards.
Q: Can the fixture be customized?
A: Fixtures can be customized according to special samples.
